¾ãÀº ÆÇÀç¿¡´Â ü°á·ÂÀ» À¯Áö ÇØÁÙ ¸¸Å­ ÃæºÐÇÑ ³ª»ç»ê È®º¸°¡ ¾î·Á¿ì¹Ç·Î, ÃæºÐÇÑ ³ª»ç»êÀ» °¡Áø ³ÊÆ® ¶Ç´Â ½ºÅ͵带 ¸ðÀç¿¡ ¾ÐÂø ½ÃŲ´Ù. Ŭ¸°Äª ¹æ½Ä°ú ¸®ºªÆà ¹æ½ÄÀÌ ÀÖÀ¸¸ç, Ŭ¸°Äª ¹æ½ÄÀº ¸ðÀç »ðÀԺο¡ µ¹±â³ª Çü»óÀ» ¸¸µé¾î¼­ ¸ðÀç¿¡ »ðÀÔ ÈÄ È¸Àü ÀúÇ×À» ¹ÞÀ» ¼ö ÀÖµµ·Ï ÇÏ´Â °ÍÀ̸ç, ¸®ºªÆà ¹æ½ÄÀº »ðÀԺΠ¹Ý´ëÆíÀ¸·Î ³ª¿Â ³ÊÆ®(½ºÅ͵å)ÀÇ ÀϺθ¦ Å©¸²ÇÎ(Á¢Çô¼­)½ÃÄѼ­ ¸ðÀç¿¡ ºÎÂø½ÃÅ°´Â ¹æ½ÄÀÌ´Ù.

¢Ã ȸÀü ÀúÇ× Å丣ũ°¡ ¸Å¿ì ³ô´Ù.
¢Ã ¸ðÀç Ç¥¸éÀÇ µ¹ÃâÀÌ ¾ø¾î¼­ ¿Ü°üÀÌ ¼ö·ÁÇÏ´Ù.
¢Ã °£´ÜÇÑ ÇÁ·¹½º Àåºñ·Î °¡´ÉÇÏ´Ù.



Thread
&
Pitch
Material
Code
Minimum
Sheet
Thickness

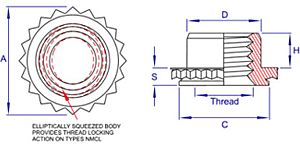

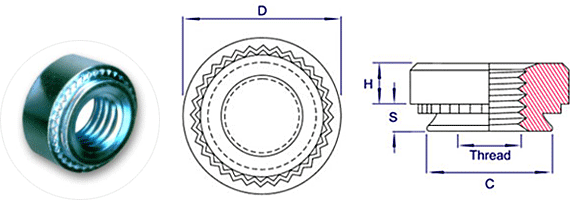

S Max C Max D +/- 0.2 H /- 0.1 Hole Size
in Panel
+ 0.08 - 0.0
Min C/L to
edge of
panel
M2.5 x 0.4 0 0.8 0.76 4.22 6.30 1.5 4.25 4.8
1 1.0 0.97
2 1.4 1.37
M3 x 0.5 0 0.8 0.76 4.22 6.3 1.5 4.25 4.8
1 1.0 0.97
2 1.4 1.37
Alternative
M3 x 0.5
0 0.8 0.76 4.73 7.1 1.5 4.75 5.6
1 1.0 0.97
2 1.4 1.37
M3.5 x 0.6 0 0.8 0.76 4.73 7.1 1.5 4.75 5.6
1 1.0 0.97
2 1.4 1.37
M4 x 0.7 0 0.8 0.76 5.38 7.9 2.0 5.4 6.9
1 1.0 0.97
2 1.4 1.37
M5 x 0.8 0 0.8 0.76 6.38 8.7 2.0 6.4 7.1
1 1.0 0.97
2 1.4 1.37
M6 x 1.0 1 1.4 1.37 8.72 11.05 4.1 8.75 8.6
2 2.3 2.21
M8 x 1.25 1 1.4 1.37 10.44 12.65 5.5 10.5 9.7
2
2.3 2.21
M10 x 1.50 1
2.3 2.21 13.97 17.35 7.5 14.00 13.5
2 3.2 3.05

Materials Finishes
Carbon Steel
300 Series Stainless Steel (A2)
Aluminium (AL) (Special Order)
Bright Zinc / Clear Passivate (ZI)
Zinc / Yellow Passivate (Special Order) (ZC)
Maximum hardness of parent material : Steel parts - 80HRB : Stainless Steel parts - 70HRB : Aluminium parts - 50HRB. Please note that Stainless Steel parts cannot usually be successfully installed into Stainless Steel Sheet.
Part Number Examples
Type | Thread | Material Code | Finish
i.e. : NS-M3-1-ZI
(Clinch Nut-M3-1mm Min Sheet-Steel-BZP)
i.e. : NS-M4-2-A2
(Clinch Nut-M4-1.4mm Min-Sheet-Stainless Steel)
